Lego Millenium Falcon with All LEDStrip effects in one (FastLED)

7 Posts
2 Users
4 Likes
1,883 Views
(@normen)
Active Member
Joined: 4 years ago
Posts: 3
Topic starter

Here is my next project - the effects are taken from Effects

I don't know how to upload a video here - so here is a link : Video

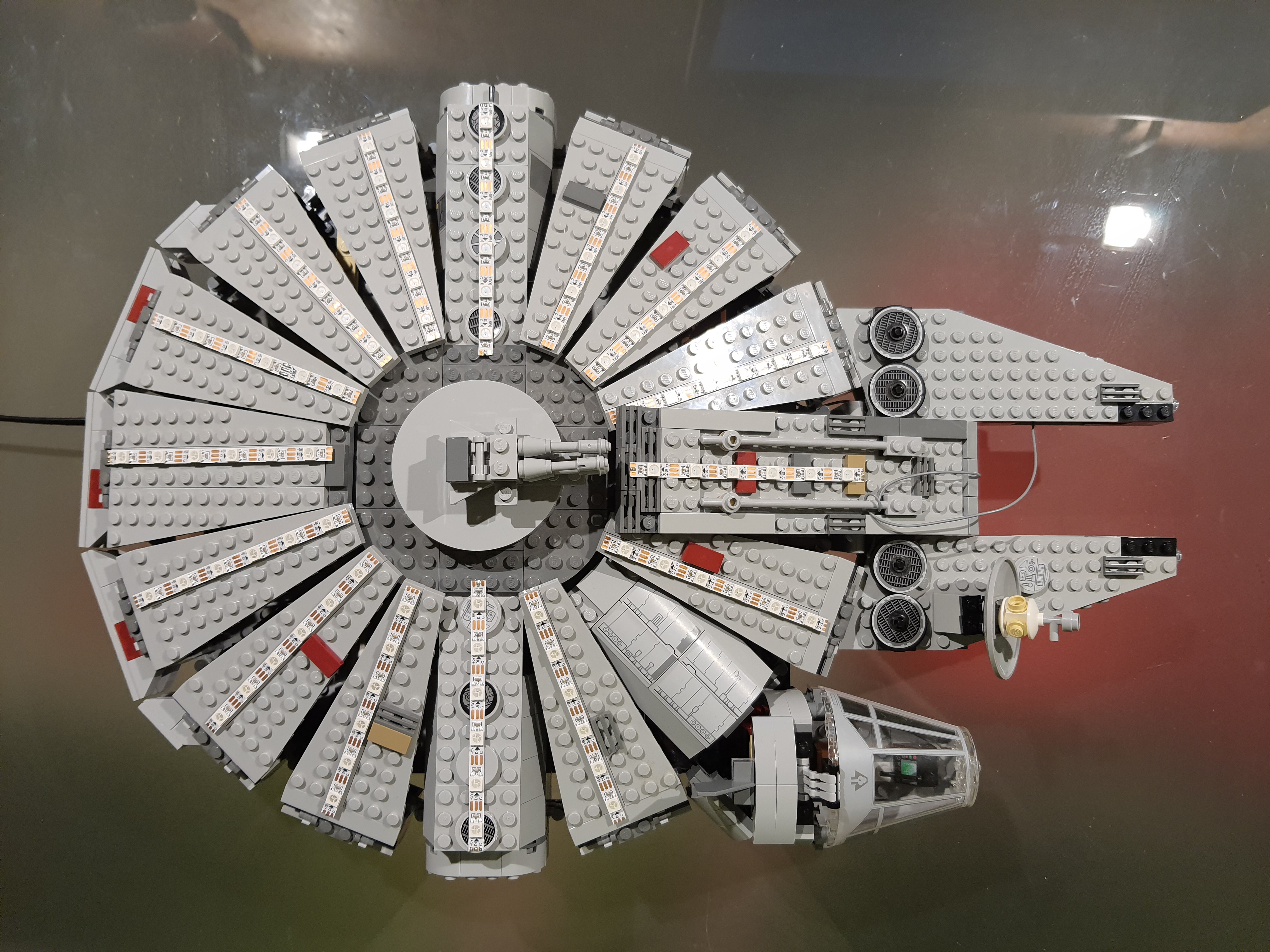

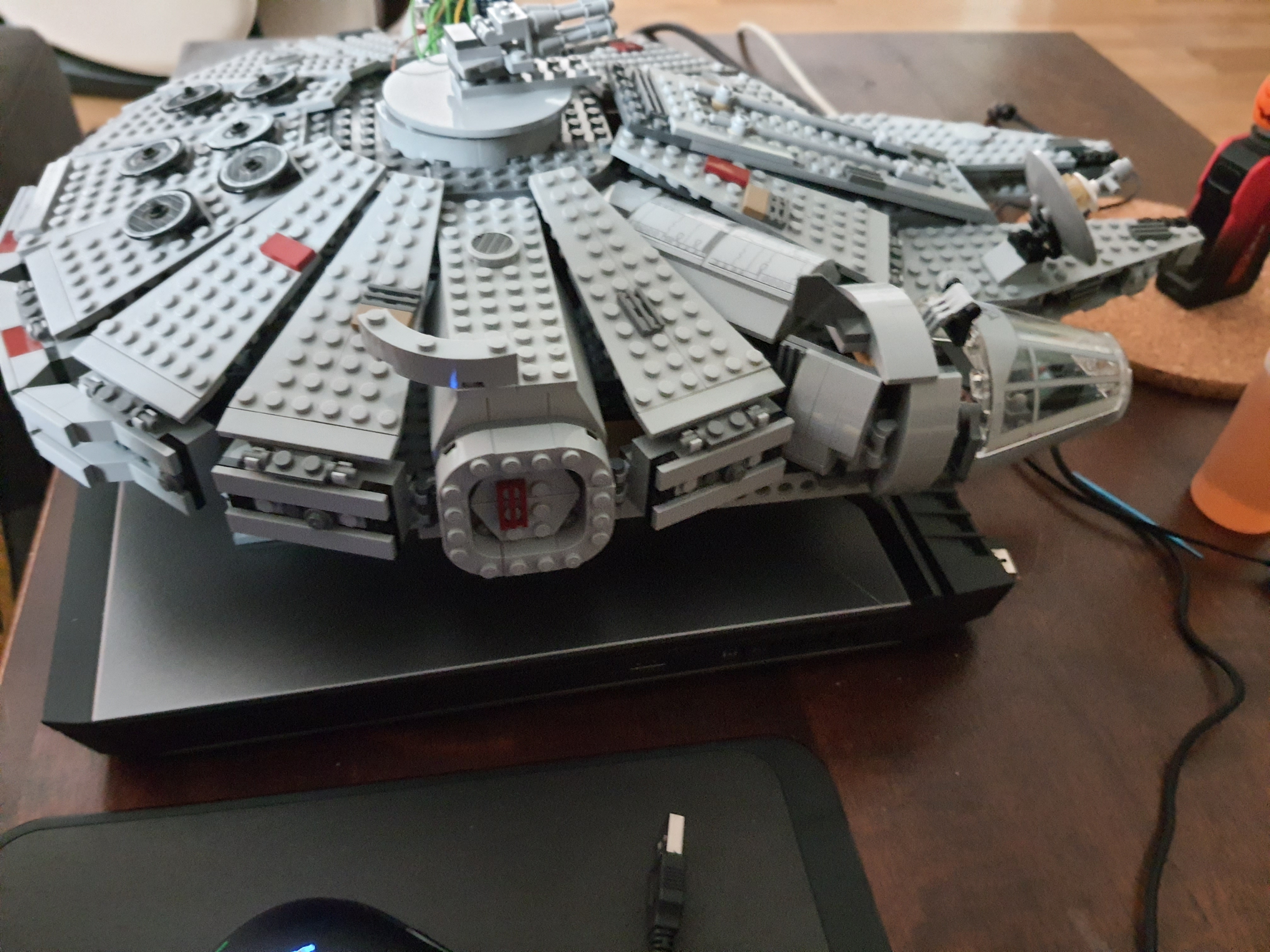

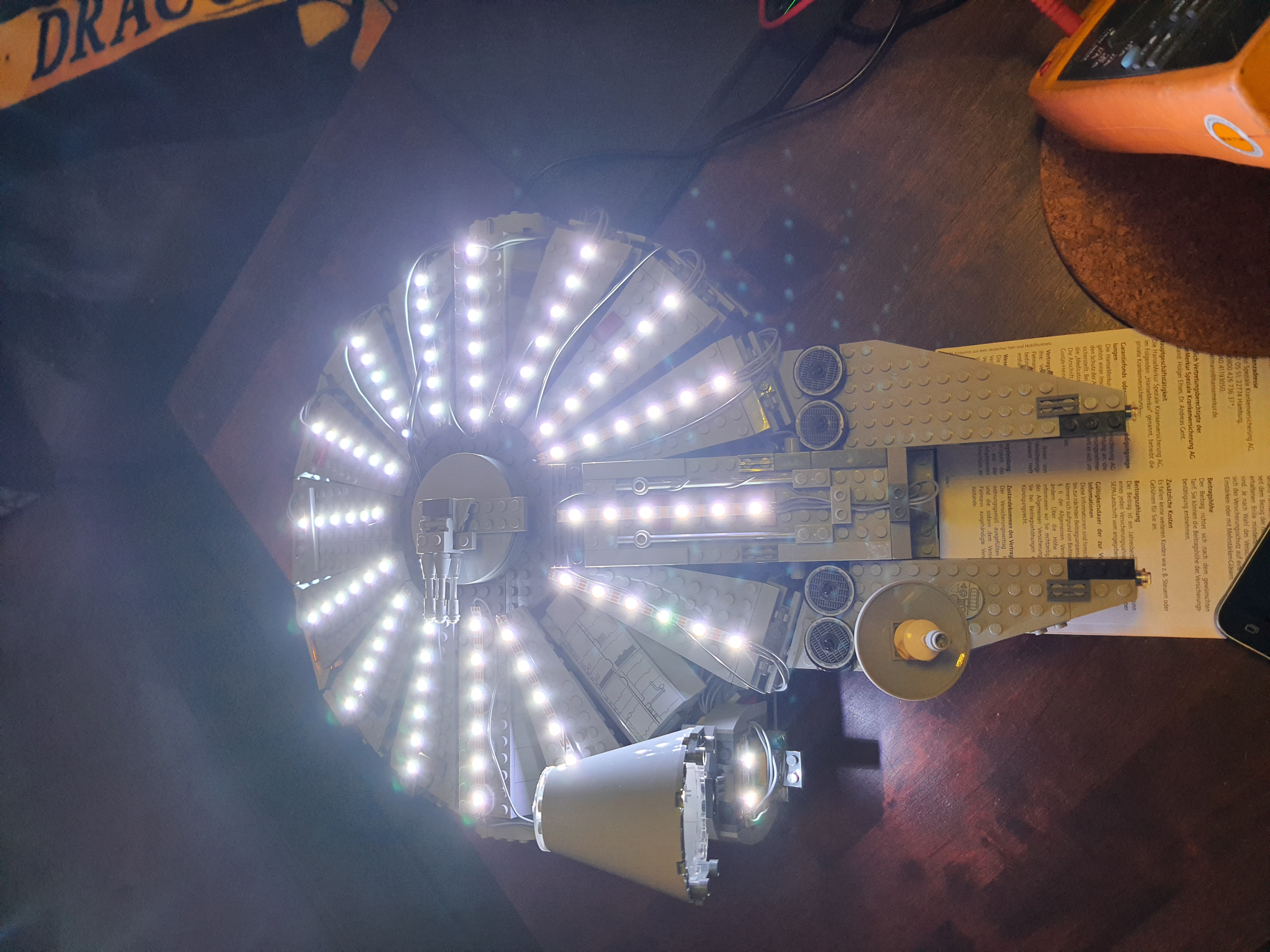

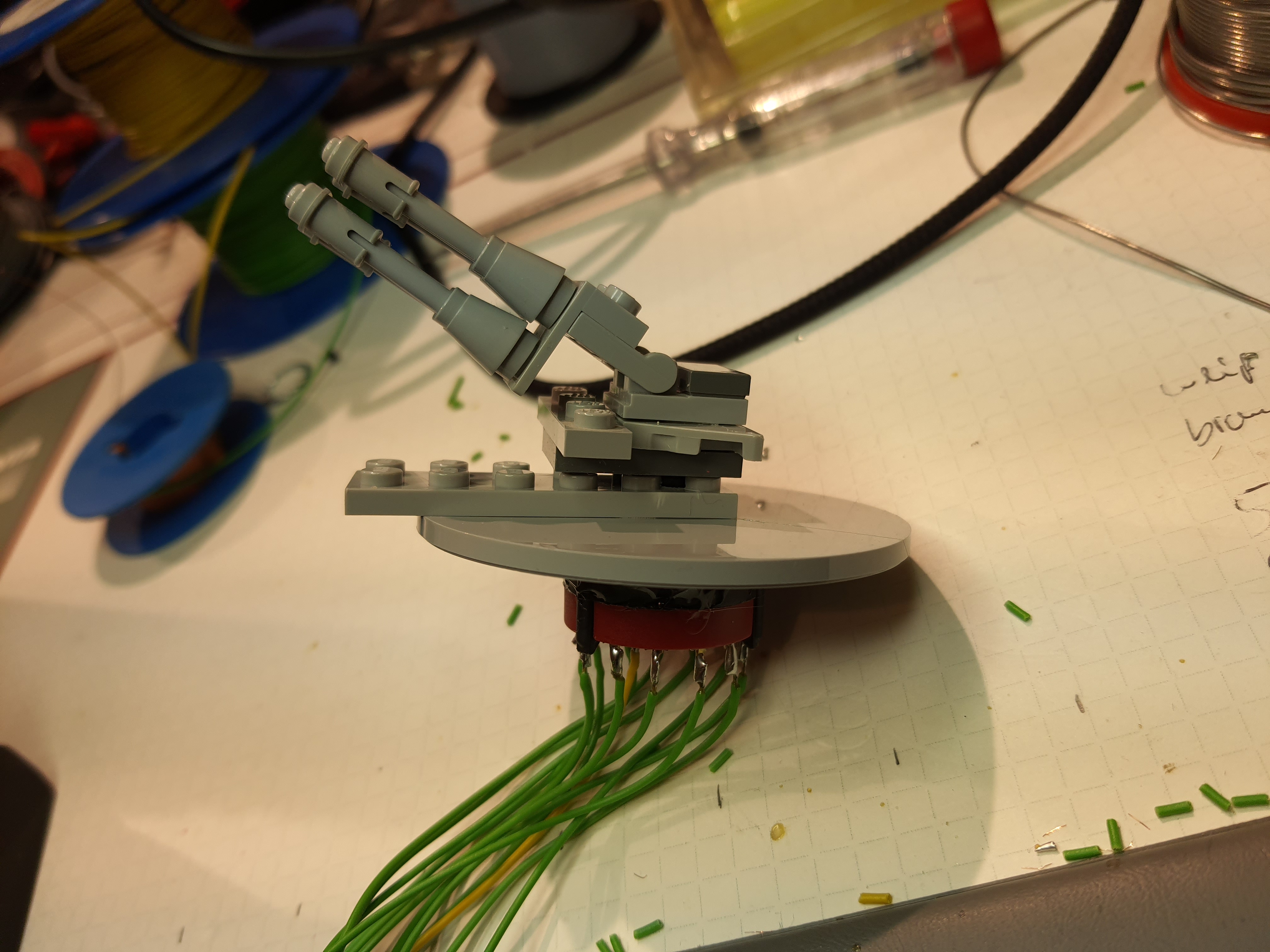

Some pictures: Picture 1 Picture 2 Picture 3 Picture 4



And the code:

//Stromaufnahme (gemessen) wenn alle 101 LEds weiß maximal leuchten: ca. 2,8A
//Version 12 ist final
//Millennium falke Normen Altiparmak

#include <FastLED.h>
#define LED_PIN 10 //Pin der Datenleitung zu dem LED-Strip
#define NUM_LEDS 101 //segmente (6*15)+ 2 antrieb+ 9 kanzel
//#define LED_TYPE WS2812B
//#define LED_TYPE WS2811
//#define LED_TYPE WS2801 - der definiert nicht
//#define LED_TYPE UCS1903 - der definiert nicht
#define LED_TYPE WS2812
#define COLOR_ORDER GRB

#define HELLIGKEITS_STUFE 20
#define MINIMALE_HELLIGKEIT 10
CRGB leds[NUM_LEDS]; //speichert die LED-Farbwerte
int status =-1;
int laststatus=-1;
volatile unsigned long alteZeit=0, entprellZeit=100; //fuer heller und dunkler verwendet
static unsigned long lastMillis = 0; //als einschlaftimer verwendet
int brightness = 100; //startwert
int temp = 0;
int tempbrightness=0;

unsigned char antriebblinkzaehler=0;
unsigned char antriebblinkteiler=0;

byte colors[3][3] = { {0xff, 0x00, 0x00},{0xff, 0xff, 0xff}, {0x00, 0x00, 0xff} };

void setup()
{
Serial.begin(9600);
//configure pin 2 as an input and enable the internal pull-up resistor
pinMode(A0, INPUT_PULLUP);
pinMode(A1, INPUT_PULLUP);
pinMode(A2, INPUT_PULLUP);
pinMode(A3, INPUT_PULLUP);
pinMode(A4, INPUT_PULLUP);
pinMode(A5, INPUT_PULLUP);
pinMode( 8, INPUT_PULLUP);
pinMode( 9, INPUT_PULLUP);
pinMode(4, INPUT_PULLUP);
pinMode(5, INPUT_PULLUP);
pinMode(6, INPUT_PULLUP);
pinMode(7, INPUT_PULLUP);

pinMode(2, INPUT_PULLUP); //dunkler
pinMode(3, INPUT_PULLUP); //heller

//attachInterrupt(digitalPinToInterrupt(2), dunkler, FALLING);
//attachInterrupt(digitalPinToInterrupt(3), heller, FALLING);

attachInterrupt(digitalPinToInterrupt(2), dunkler, LOW);
attachInterrupt(digitalPinToInterrupt(3), heller, LOW);

FastLED.addLeds<LED_TYPE,LED_PIN,COLOR_ORDER>(leds, NUM_LEDS).setCorrection(TypicalLEDStrip); // initializes LED strip - vorne 256
setAll (255,255,255);
FastLED.setBrightness (brightness);
FastLED.show();

Serial.println("Startup Eddys Falke");

}

int readstatus ()
{
if (digitalRead(A0)==0) return 5; //
if (digitalRead(A1)==0) return 6; //
if (digitalRead(A2)==0) return 7; //
if (digitalRead(A3)==0) return 8; //
if (digitalRead(A4)==0) return 9; //
if (digitalRead(A5)==0) return 10; //
if (digitalRead( 8)==0) return 0; //
if (digitalRead( 9)==0) return 11; //
if (digitalRead( 4)==0) return 1;
if (digitalRead( 5)==0) return 2; //
if (digitalRead( 6)==0) return 3; //
if (digitalRead( 7)==0) return 4; //
return -1;
}

void dunkler()
{
if((millis() - alteZeit) > entprellZeit) {
temp = brightness - HELLIGKEITS_STUFE;
if (temp>HELLIGKEITS_STUFE)
{
brightness = brightness - HELLIGKEITS_STUFE;
FastLED.setBrightness (brightness);
}
else
{
brightness = MINIMALE_HELLIGKEIT;
FastLED.setBrightness (brightness);
}
alteZeit = millis(); // letzte Schaltzeit merken
}
}

void heller()
{
if((millis() - alteZeit) > entprellZeit) {
// innerhalb der entprellZeit nichts machen
//Serial.println("heller");
temp = brightness + HELLIGKEITS_STUFE;
if (temp<=255)
{
brightness = brightness + HELLIGKEITS_STUFE;
FastLED.setBrightness (brightness);
}
else
{
brightness = 255;
FastLED.setBrightness (brightness);
}
alteZeit = millis(); // letzte Schaltzeit merken
}
}

void dimout (int wartezeit)
{
for (tempbrightness=brightness;tempbrightness>=0;tempbrightness--)
{
FastLED.setBrightness (tempbrightness);
FastLED.show();
delay (wartezeit);
}
delay (300);
}

void dimin (int wartezeit)
{
for (tempbrightness=0;brightness>=tempbrightness;tempbrightness++)
{
FastLED.setBrightness (tempbrightness);
FastLED.show();
delay (wartezeit);
}
}

void loop()
{
status=readstatus();
if (status!=-1)
{
//FastLED.setBrightness (brightness); //am Ende jeder Funktion wird runtergedimmt - daher hier wieder anschalten
Serial.print("Status: ");
Serial.print(status, DEC);
Serial.print(" / Helligkeit: ");
Serial.println(brightness, DEC);

switch (status)
{
case 0: {
schlaflicht (0); //schlaflicht dimmt selbst aus
} break;
case 1: {
normaleslicht (1);
dimout(3);
} break;
case 2: {
NewKITT(2,0xff, 0x00, 0x00, 8, 5, 50);
dimout(3);
} break;
case 3: {
meteorRain(3,0xff,0xff,0xff,10, 64, true, 50);
//delay (1000);
dimout(3);
} break;
case 4: {
theaterChaseRainbow(4,60);
dimout(3);
} break;
case 5: {
Fire(5,55,120,15);
dimout(3);
} break;
case 6: {
TwinkleRandom(6,20, 100, false);
dimout(3);
} break;
case 7: {
rainbowCycle(7,50);
dimout(3);
} break;
case 8: {
zufall(8,5);
dimout(3);
} break;
case 9: {
SnowSparkle(9,0x10, 0x10, 0x10, 20, random(100,1000));
dimout(3);
} break;
case 10: {
RunningLights(10, 50); // blue
dimout(3);
} break;
case 11: {
BouncingColoredBalls(11,3, colors, true);
dimout(3);
} break;

}

}
}

void zufall (int auswahl, int warten)
{
setAll(0,0,0);
dimin(1);
while (1)
{
setPixel(random(NUM_LEDS), random8(), random8(), random8());
FastLED.show();
if (readstatus()!=auswahl) return;
delay(warten);

}
}

void NewKITT(int auswahl, byte red, byte green, byte blue, int EyeSize, int SpeedDelay, int ReturnDelay){
setAllRing(0,0,0);
dimin(1);
RightToLeft(auswahl, red, green, blue, EyeSize, SpeedDelay, ReturnDelay);
LeftToRight(auswahl, red, green, blue, EyeSize, SpeedDelay, ReturnDelay);
OutsideToCenter(auswahl, red, green, blue, EyeSize, SpeedDelay, ReturnDelay);
CenterToOutside(auswahl, red, green, blue, EyeSize, SpeedDelay, ReturnDelay);
LeftToRight(auswahl, red, green, blue, EyeSize, SpeedDelay, ReturnDelay);
RightToLeft(auswahl, red, green, blue, EyeSize, SpeedDelay, ReturnDelay);
OutsideToCenter(auswahl, red, green, blue, EyeSize, SpeedDelay, ReturnDelay);
CenterToOutside(auswahl, red, green, blue, EyeSize, SpeedDelay, ReturnDelay);
}

// used by NewKITT
void CenterToOutside(int auswahl, byte red, byte green, byte blue, int EyeSize, int SpeedDelay, int ReturnDelay) {
for(int i =((90-EyeSize)/2); i>=0; i--) {
setAllRing(0,0,0);

setPixel(i, red/10, green/10, blue/10);
for(int j = 1; j <= EyeSize; j++) {
setPixel(i+j, red, green, blue);
}
setPixel(i+EyeSize+1, red/10, green/10, blue/10);

setPixel(90-i-1, red/10, green/10, blue/10);//bugfix aus text
for(int j = 1; j <= EyeSize; j++) {
setPixel(90-i-j, red, green, blue);
}
setPixel(90-i-EyeSize-1, red/10, green/10, blue/10);

showStrip();
if (readstatus()!=auswahl) return;
blinkantrieb();
delay(SpeedDelay);
}
if (readstatus()!=auswahl) return;
blinkantrieb();
delay(ReturnDelay);
}

// used by NewKITT
void OutsideToCenter(int auswahl, byte red, byte green, byte blue, int EyeSize, int SpeedDelay, int ReturnDelay) {
for(int i = 0; i<=((90-EyeSize)/2); i++) {
setAllRing(0,0,0);

setPixel(i, red/10, green/10, blue/10);
for(int j = 1; j <= EyeSize; j++) {
setPixel(i+j, red, green, blue);
}
setPixel(i+EyeSize+1, red/10, green/10, blue/10);

setPixel(90-i-1, red/10, green/10, blue/10);//bugfix aus text
for(int j = 1; j <= EyeSize; j++) {
setPixel(90-i-j, red, green, blue);
}
setPixel(90-i-EyeSize-1, red/10, green/10, blue/10);

showStrip();
if (readstatus()!=auswahl) return;
blinkantrieb();
delay(SpeedDelay);
}
if (readstatus()!=auswahl) return;
blinkantrieb();
delay(ReturnDelay);
}

// used by NewKITT
void LeftToRight(int auswahl, byte red, byte green, byte blue, int EyeSize, int SpeedDelay, int ReturnDelay) {
for(int i = 0; i < 90-EyeSize-2; i++) {
setAllRing(0,0,0);
setPixel(i, red/10, green/10, blue/10);
for(int j = 1; j <= EyeSize; j++) {
setPixel(i+j, red, green, blue);
}
setPixel(i+EyeSize+1, red/10, green/10, blue/10);
showStrip();
if (readstatus()!=auswahl) return;
blinkantrieb();
delay(SpeedDelay);
}
if (readstatus()!=auswahl) return;
blinkantrieb();
delay(ReturnDelay);
}

// used by NewKITT
void RightToLeft(int auswahl, byte red, byte green, byte blue, int EyeSize, int SpeedDelay, int ReturnDelay) {
for(int i = 90-EyeSize-2; i > 0; i--) {
setAllRing(0,0,0);
setPixel(i, red/10, green/10, blue/10);
for(int j = 1; j <= EyeSize; j++) {
setPixel(i+j, red, green, blue);
}
setPixel(i+EyeSize+1, red/10, green/10, blue/10);
showStrip();
if (readstatus()!=auswahl) return;
blinkantrieb();
delay(SpeedDelay);
}
if (readstatus()!=auswahl) return;
blinkantrieb();
delay(ReturnDelay);
}

// used by NewKITT
void blinkantrieb ()
{
int adder;
adder=random (9);
setPixel(92+adder,random8(), random8(), random8());
}

void schlaflicht(int auswahl)
{
unsigned int zaehler=0;
int i,j;

FastLED.setBrightness (0);
setAllRing (128,128,128);
setCockpit (128,0,0);
setAntrieb(0,0,128);
setRing (0,0,128,0);
setRing (5,128,0,128);

brightness=50;
dimin(2);

lastMillis = millis();
Serial.println("start schlafen");
zaehler=12000; //wird alle 10 ms runtergezaehlt
while (millis() - lastMillis <= 14400000)
//while (millis() - lastMillis <= 10000)
{
zaehler--;
if (zaehler==0)
{
zaehler=12000;
if (brightness>100) brightness--;
if (brightness>10) brightness--;
FastLED.setBrightness (brightness);
Serial.print("Hell: ");
Serial.println(brightness, DEC);
}
FastLED.show();
if (readstatus()!=auswahl)
{
dimout(3);
brightness=100; //die anderen funktionen kommen mit krummen werten nicht zurecht
return;
}
delay (10);
}
Serial.println("time to sleep");
for (i=1;i<5;i++) //die weissen ringe werden runtergefahren
{
for (j=128;j>=0;j--)
{
setRing(i,j,j,j);
delay(5);
}
delay(1000);
}
for (j=128;j>=0;j--) setAntrieb(0,0,j);
while(1)
{
if (readstatus()!=auswahl)
{
dimout(3);
brightness=100; //die anderen funktionen kommen mit krummen werten nicht zurecht
return;
}
FastLED.show();
delay (10);
}
}

void normaleslicht (int auswahl)
{
setAll (255,255,255);
setPixel(92,0,0,255);
setPixel(100,0,0,255);
setRing (0,0,0,255);
setRing (5,0,0,255);
dimin(2);

while (1)
{
FastLED.show();
if (readstatus()!=auswahl) return;
delay (10);
}
}

void allblue (int auswahl)
{
//Serial.println("start allblue");
//delay (3000);
setAll (0,0,255);
//Serial.println("start dimin");
//delay (3000);
dimin(2);

while (1)
{
FastLED.show();
if (readstatus()!=auswahl) return;
delay (10);
}
}

void SnowSparkle(int auswahl,byte red, byte green, byte blue, int SparkleDelay, int SpeedDelay) {
int i;
setAll(0,0,0);
dimin(1);
while (1)
{
setAll(0,0,0);
for (i=3;i< (random (100));i++)
{
int Pixel = random(NUM_LEDS)-1;
setPixel(Pixel,0xff,0xff,0xff);
if (readstatus()!=auswahl) return;
delay(SparkleDelay);
}
FastLED.show();
//delay(1);
}
}

void RunningLights(int auswahl, int WaveDelay) {
int Position=0;
unsigned char red,green,blue;

setAll (0,0,0);
dimin(1);
while (1)
{
for(int i=0; i<36; i++)
{
red=random(255);
green=random(255);
blue=random(255);
Position++; // = 0; //Position + Rate;
for(int i=0; i<NUM_LEDS; i++) {
// sine wave, 3 offset waves make a rainbow!
//float level = sin(i+Position) * 127 + 128;
//setPixel(i,level,0,0);
float level = sin(i+Position) * 127 + 128;
setPixel(i,((sin(i+Position) * 127 + 128)/255)*red,
((sin(i+Position) * 127 + 128)/255)*green,
((sin(i+Position) * 127 + 128)/255)*blue);
}

showStrip();
if (readstatus()!=auswahl) return;
delay(WaveDelay);
}
}
}

//used by fire
void setPixelHeatColor (int Pixel, byte temperature) {
// Scale 'heat' down from 0-255 to 0-191
byte t192 = round((temperature/255.0)*191);

// calculate ramp up from
byte heatramp = t192 & 0x3F; // 0..63
heatramp <<= 2; // scale up to 0..252

// figure out which third of the spectrum we're in:
if( t192 > 0x80) { // hottest
setPixel(Pixel, 255, 255, heatramp);
} else if( t192 > 0x40 ) { // middle
setPixel(Pixel, 255, heatramp, 0);
} else { // coolest
setPixel(Pixel, heatramp, 0, 0);
}
}

void Fire(int auswahl, int Cooling, int Sparking, int SpeedDelay) {
static byte heat[90];
int cooldown;
setAllRing(0,0,0);
setAntrieb(255,0,0);
setPixel(90,255,0,0);
setPixel(91,255,0,0);
dimin(1);
while (1)
{

// Step 1. Cool down every cell a little
for( int i = 0; i < 90; i++)
{
cooldown = random(0, ((Cooling * 10) / 90) + 2);
if(cooldown>heat[i]) heat[i]=0;
else heat[i]=heat[i]-cooldown;
}

// Step 2. Heat from each cell drifts 'up' and diffuses a little
for( int k= 90 - 1; k >= 2; k--) heat[k] = (heat[k - 1] + heat[k - 2] + heat[k - 2]) / 3;

// Step 3. Randomly ignite new 'sparks' near the bottom
if( random(255) < Sparking )
{
int y = random(7);
heat[y] = heat[y] + random(160,255);
}

// Step 4. Convert heat to LED colors
for( int j = 0; j < 90; j++) setPixelHeatColor(j, heat[j] );

FastLED.show();
if (readstatus()!=auswahl) return;
}
}

void meteorRain(int auswahl, byte red, byte green, byte blue, byte meteorSize, byte meteorTrailDecay, boolean meteorRandomDecay, int SpeedDelay) {
antriebblinkzaehler=0;
antriebblinkteiler=0;
setAll(0,0,0);
dimin(2);
while (1)
{
for(int i = 0; i < 180; i++) {

// fade brightness all LEDs one step
for(int j=0; j<90; j++) {
if( (!meteorRandomDecay) || (random(10)>5) ) {
fadeToBlack(j, meteorTrailDecay );
}
}

// draw meteor
for(int j = 0; j < meteorSize; j++) {
if( ( i-j <90) && (i-j>=0) ) {
setPixel(i-j, red, green, blue);
leds[90] = CHSV(random8(),random8(),random8()); // hue, saturation, value
leds[91] = CHSV(random8(),random8(),random8()); // hue, saturation, value
antriebblink();
}
}

showStrip();
if (readstatus()!=auswahl) return;
delay(SpeedDelay);
}
}
}

//used by meteorrain
void antriebblink ()
{
int i=0;
if (antriebblinkteiler%4==0)
{
for (i=92;i<101;i++) setPixel(i, 0, 0, antriebblinkzaehler);
antriebblinkzaehler++;
}

antriebblinkteiler++;
}
// used by meteorrain
void fadeToBlack(int ledNo, byte fadeValue) {

leds[ledNo].fadeToBlackBy( fadeValue );
leds[90] = CHSV(random8(),random8(),random8()); // cockpit blinken
leds[91] = CHSV(random8(),random8(),random8()); // cockpit blinken
antriebblink();

}

void theaterChaseRainbow(int auswahl, int SpeedDelay) {
byte *c;
setAll(0,0,0);
dimin(1);
while (1)
{

for (int j=0; j < 256; j++) { // cycle all 256 colors in the wheel
for (int q=0; q < 3; q++) {
for (int i=0; i < NUM_LEDS; i=i+3) {
c = Wheel( (i+j) % 255);
setPixel(i+q, *c, *(c+1), *(c+2)); //turn every third pixel on
}
showStrip();

delay(SpeedDelay);
if (readstatus()!=auswahl) return;

for (int i=0; i < NUM_LEDS; i=i+3) {
setPixel(i+q, 0,0,0); //turn every third pixel off
}
}
}
}
}
// used by rainbowCycle and theaterChaseRainbow
byte * Wheel(byte WheelPos) {
static byte c[3];

if(WheelPos < 85) {
c[0]=WheelPos * 3;
c[1]=255 - WheelPos * 3;
c[2]=0;
} else if(WheelPos < 170) {
WheelPos -= 85;
c[0]=255 - WheelPos * 3;
c[1]=0;
c[2]=WheelPos * 3;
} else {
WheelPos -= 170;
c[0]=0;
c[1]=WheelPos * 3;
c[2]=255 - WheelPos * 3;
}

return c;
}

void rainbowCycle(int auswahl, int SpeedDelay) {
byte *c;
uint16_t i, j;
setAll (0,0,0);
dimin(1);
while (1)
{
for(j=0; j<256*5; j++) // 5 cycles of all colors on wheel
{

for(i=1; i<= 92; i++)
{
c=Wheel(((i * 256 / 92) + j) & 255);
setPixel(i, *c, *(c+1), *(c+2));
}
setAntrieb (leds[48].red,leds[48].green,leds[48].blue);
FastLED.show();
if (readstatus()!=auswahl) return;
}
}
}

void BouncingColoredBalls(int auswahl, int BallCount, byte colors[][3], boolean continuous) {
float Gravity = -9.81;
int StartHeight = 1;

float Height[BallCount];
float ImpactVelocityStart = sqrt( -2 * Gravity * StartHeight );
float ImpactVelocity[BallCount];
float TimeSinceLastBounce[BallCount];
int Position[BallCount];
long ClockTimeSinceLastBounce[BallCount];
float Dampening[BallCount];
boolean ballBouncing[BallCount];
boolean ballsStillBouncing = true;

setAll(0,0,0);
setAntrieb(0,255,0);
setPixel(90, 0,255,255);
setPixel(91,255,255,0);
dimin(1);
for (int i = 0 ; i < BallCount ; i++) {
ClockTimeSinceLastBounce[i] = millis();
Height[i] = StartHeight;
Position[i] = 0;
ImpactVelocity[i] = ImpactVelocityStart;
TimeSinceLastBounce[i] = 0;
Dampening[i] = 0.90 - float(i)/pow(BallCount,2);
ballBouncing[i]=true;
}

while (ballsStillBouncing) {
for (int i = 0 ; i < BallCount ; i++) {
TimeSinceLastBounce[i] = millis() - ClockTimeSinceLastBounce[i];
Height[i] = 0.5 * Gravity * pow( TimeSinceLastBounce[i]/1000 , 2.0 ) + ImpactVelocity[i] * TimeSinceLastBounce[i]/1000;

if ( Height[i] < 0 ) {
Height[i] = 0;
ImpactVelocity[i] = Dampening[i] * ImpactVelocity[i];
ClockTimeSinceLastBounce[i] = millis();

if ( ImpactVelocity[i] < 0.01 ) {
if (continuous) {
ImpactVelocity[i] = ImpactVelocityStart;
} else {
ballBouncing[i]=false;
}
}
}
Position[i] = round( Height[i] * (90 - 1) / StartHeight);
}

ballsStillBouncing = false; // assume no balls bouncing
for (int i = 0 ; i < BallCount ; i++) {
setPixel(Position[i],colors[i][0],colors[i][1],colors[i][2]);
if ( ballBouncing[i] ) {
ballsStillBouncing = true;
}
}

showStrip();
if (readstatus()!=auswahl) return;
setAllRing(0,0,0);
}
}

void NOTUSED_RGBLoop(int auswahl){
setAll(0,0,0);
dimin(1);
for(int j = 0; j < 3; j++ ) {
// Fade IN
for(int k = 0; k < 256; k++) {
switch(j) {
case 0: setAll(k,0,0); break;
case 1: setAll(0,k,0); break;
case 2: setAll(0,0,k); break;
}
showStrip();
delay(3);
}
// Fade OUT
for(int k = 255; k >= 0; k--) {
switch(j) {
case 0: setAll(k,0,0); break;
case 1: setAll(0,k,0); break;
case 2: setAll(0,0,k); break;
}
showStrip();
if (readstatus()!=auswahl) return;
delay(3);
}
}
}

void TwinkleRandom(int auswahl, int Count, int SpeedDelay, boolean OnlyOne) {
setAll(0,0,0);
dimin(1);
while (1)
{

for (int i=0; i<Count; i++) {
setPixel(random(NUM_LEDS),random(0,255),random(0,255),random(0,255));
showStrip();
if (readstatus()!=auswahl) return;
delay(SpeedDelay);
if(OnlyOne) {
setAll(0,0,0);
}
}
if (readstatus()!=auswahl) return;
delay(SpeedDelay);
dimout(5);
setAll(0,0,0);
dimin(1);
}
}

void setPixel(int Pixel, byte red, byte green, byte blue) {
leds[Pixel].r = red;
leds[Pixel].g = green;
leds[Pixel].b = blue;
}

void showStrip() {

FastLED.show();

}

void setAll(byte red, byte green, byte blue) {
for(int i = 0; i < NUM_LEDS; i++ ) {
setPixel(i, red, green, blue);
}
FastLED.show();
}

void setCockpit(byte red, byte green, byte blue) {
for(int i = 90; i < 92; i++ ) {
setPixel(i, red, green, blue);
}
FastLED.show();
}

void setAntrieb(byte red, byte green, byte blue) {
for(int i = 92; i < 101; i++ ) {
setPixel(i, red, green, blue);
}
FastLED.show();
}

void setAllRing (byte red, byte green, byte blue)
{
int i;
for (i=0;i<=5;i++)
{
setRing(i,red,green,blue);
}
}

void setRing (byte nummer, byte red, byte green, byte blue)
{
for(int i = 0; i < 15; i++ ) {
setPixel(((nummer)+(i*6)), red, green, blue);
}
FastLED.show();
}



Hans reacted
ReplyQuote
 Hans
(@hans)
Famed Member Admin
Joined: 10 years ago
Posts: 2554


Hi Normen!

That's an awesome project! 👍 🤩

I've attached the images here (just for future reference, incase the linked pictures disappear).
Any chance you can upload the code as an ino file? (if not: no worries, folks can copy it still from your post)

Do you have any video (or YouTube channel) to see it in action?



ReplyQuote
(@normen)
Active Member
Joined: 4 years ago
Posts: 3
Topic starter

@hansthe video is also in the linked post... http://www.altiparmak.de/privat/diverses/eddy.mp4

ino-file: http://www.altiparmak.de/privat/diverses/eddy_13.ino

i dont know how to upload it here....

This post was modified 3 years ago by normen


Hans reacted
ReplyQuote
 Hans
(@hans)
Famed Member Admin
Joined: 10 years ago
Posts: 2554


Never mind the video question haha ... I totally missed that link. Sorry.

The video is 32Mb which is too big for the current settings. I'm tinkering on it to get that fixed 😊

I've uploaded the ino here (your account is to new to post attachments, I think it takes 5 posts to get the option to attach).



ReplyQuote
(@normen)
Active Member
Joined: 4 years ago
Posts: 3
Topic starter

@hansi have shrinked it to <10mb: http://www.altiparmak.de/privat/diverses/eddy_klein.mp4



Hans reacted
ReplyQuote


 Hans
(@hans)
Famed Member Admin
Joined: 10 years ago
Posts: 2554


Whatever I try (not to mention the numerous locations where one can set the max upload size) uploading keeps failing. I did notice you already did a great job at compressing it. So I did bring it down from 1080p to 720p.



ReplyQuote
 Hans
(@hans)
Famed Member Admin
Joined: 10 years ago
Posts: 2554


Awesome haha - I think we just did about the same thing 😊



normen reacted
ReplyQuote

Like what you see and you'd like to help out?

The best way to help is of course by assisting others with their questions here in the forum, but you can also help us out in other ways:

- Do your shopping at Amazon, it will not cost you anything extra but may generate a small commission for us,
- send a cup of coffee through PayPal ($5, $10, $20, or custom amount),
- become a Patreon,
- donate BitCoin (BTC), or BitCoinCash (BCH).

Share:
